Overview - 134 KHz RFID LF Bluetooth Reader Model: 222012

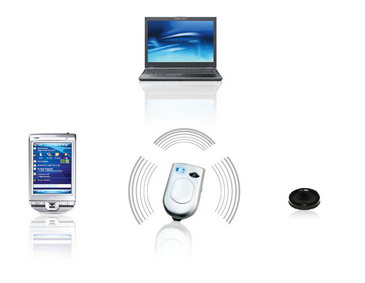

The wireless LF (134 KHz) Bluetooth based RFID device is compatible with most kinds of LF(134 KHz) cards. It uses Bluetooth (Class Two) technology to upload tag IDs to bluetooth based computers/PDAs in real-time. It is widely used in the industries of security/patrol/mining/finance and railway systems, etc.
/BlutoothReader2.jpg)
Specifications - 134 KHz RFID LF Bluetooth Reader Model: 222012
| Frequency | 134.2 KHz |
| Reading Distance | 0 to 7 CM |
| Size | 82 mm x 52.3 mm x 25.8 mm |
| Weight | < 98 g |
| Communication Interface | Wireless Bluetooth; USB |
| Antenna Connection | Built-in |
| Bluetooth Transmission Distance | > 10 M |
| Reading Time | 0.1 S |
| Power Consumption | <0.8 W |
| Operating Voltage | DC 3.7 to 4.2 V |
| Bluetooth Standard | Class Two |
| Communication Baud Rate | 9600 bps |
| Re-chargeable Lithium Battery | 950mAh, DC3.7 V |
| Humidity | 5% to 90% relative |
| Operating Temperature | -20 °C to 65 °C |
| Storage Temperature | -25 °C to 85 °C |
Options - 134KHz RFID LF Bluetooth Reader Model: 222012
| Model Number | Standard |
| 222012 | ISO11784/5 |
| 222012HDX-TI | ISO11784/5 TI Half Duplex |
| 222012FDX-TI | ISO11784/5 TI Full Duplex |
Features - 134KHz RFID LF Bluetooth Reader Model: 222012
- Wireless data transferring via the Bluetooth connection
- Can work with WinCE 5.0 or Windows Mobile 5.0/6.0 based SmartPhones or PDAs (Bluetooth featured).
- Palm sized
- Long battery life - continuously reads tags for up to 7000 times per charge
- Free SDK provided
- Excel/Word/Notepad keyboard wedge, data can be automatically updated and viewed in the real-time mode through any kind of text editors on PCs or PDAs
